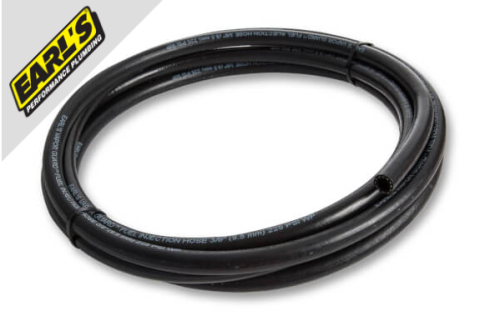

JBA Speed Shop - Vapor Guard Hose
Modern fuels are at war with your fuel system. Modern fuels (more than 40 EPA-approved fuel blends in the US alone) include additives that break down traditional rubber hose. This breakdown leads to potentially dangerous leaks & weeping as well as vapors that waste fuel and leave unwanted odors in your shop. Once fuel lines are degraded, hose particles can contaminate and obstruct fuel injectors and carburetor passages. Earl’s Vapor Guard hose and hose ends provide a complete, economical solution that virtually eliminates these fuel permeation issues common with most rubber fuel lines. The secret to Earl's Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl's Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl's Vapor Guard a three way shield against hose deterioration.
This category is empty.
More About Vapor Guard Hose
Features: Multi-layer rubber hose designed to withstand to the corrosive properties of modern fuels Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel, E-85, 100% Methanol, ETHANOL and Gasohol fuels A two foot section of Earl’s Vapor Guard saves one gallon of gas each year as compared to traditional rubber hose from permeation alone Primary Barrier Liner – initial layer offers high resistance to heat and aggressive fuels Vapor Guard Barrier – Thermoplastic layer provides superior fuel isolation significantly reducing vapors from escaping through the hose Reinforcement braid-aramid material – (EFI hose only) is used to provide the higher pressure rating that is required with fuel injection Exterior cover – provides extreme tolerance of heat and ozone Choose from carburetor or higher pressure EFI hose Hose available in 5/16” and 3/8” sizes Not for use in applications where the hose is submersed in fuel Fuel Injection Hose – Rated Maximum 225 PSI
